Integrated Type Ultrasonic Homogenizer
Integrated Type Ultrasonic Homogenizer is a well-established emulsification technique that breaks down the oils into nanoparticles resulting in a stable emulsion with increased bioavailability.
A state-of-the-art touch screen interface offers intuitive control and provides a user-friendly experience. The most important feature of a Sonicator is reproducibility. Improved internal circuitry guarantees more efficient operation, sample-to-sample consistency and most importantly, a reliable end result.
The system comes with high intensity (100µm amplitude) probes that are used to form water-soluble nanoemulsions in R&D/Lab Scale volumes from 0.5 mL – 3.0 Litre.
| Integrated Type | Ultrasonic Homogenizer |
|---|---|
| Power in | 100 ~240 Voltage, 50 ~ 60 Hz, auto adapt. |
| Power out | 800 Watt Maximum ( 1% ~ 100% stepless control) |
| Frequency | 25kHz(standard) optional: 19 ~ 26kHz auto tracking frequency. |
| Whole Size | 30 x 27 x 45 cm 5.5 Kgs Net weight (without probe) |
| Door Size | 26 x 19 cm |
| Energy and temperature set-point control Digital Type, 4.7″ Touch Screen, Programmable |
|
| Probe Materials | Titaninum Alloy |
| Probe Size | Φ12.7mm diameter tip (standard) optional: Φ3mm, Φ6mm, Φ9mm, Φ20mm, Φ30mm |
| Maximum Volume | Standard: 10ml ~ 600ml for 12.7mm probe 3 Litre maximum ( depends on different probe) |
| Packing Detail | 1 set Integrated Type Homogenizer 1 pc ultrasonic converter with titaninum probe 1 power in plug & wire, 3 pcs fuse wire 2 meter HF cable for converter connection |
Video for Integrated Type Ultrasonic Homogenizer
FUNCTION & FEATURES
PROGRAMMABILITY:
Parameters including processing times, pulse on/off and amplitude can be saved to memory and run by the touch of a button.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limit is reached, sonication shuts down to prevent overheating.
RUN MULTIPLE PROGRAMS IN SEQUENCE
Multiple programs can be run in sequence. For example, the unit can be programmed to sonicate at 50% amplitude for 5 minutes, shut off for 2 minutes and re-start at 25% amplitude for 10 minutes. Up to 5 programs can be run in succession.
TOTAL ENERGY OUTPUT DISPLAY
Energy delivered to the probe is displayed in both Watts and Joules.
AUTO TUNING
The Sonicator digitally tracks frequency changes in the converter / tip assembly caused by load and temperature changes and maintains electrical efficiency at all times. Manual tuning is unnecessary.

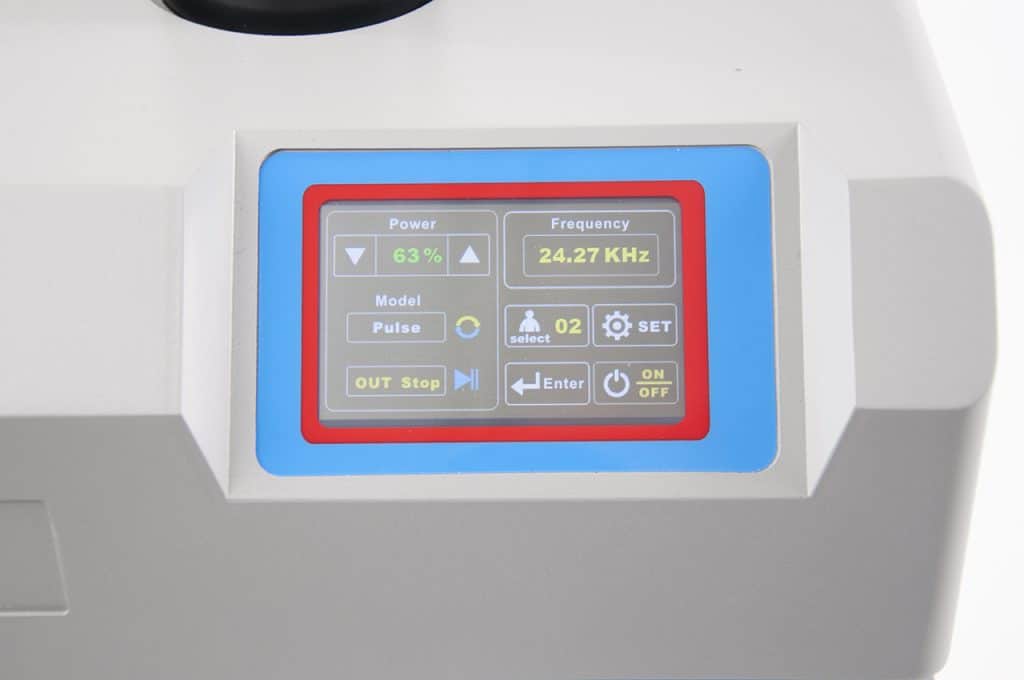

TOUCH SCREEN CONTROL
A large, color LCD screen clearly displays all operating parameters and options. Intuitively and quickly access any of the Sonicator’s functions with a simple touch.
OVERLOAD PROTECTION
The unit is equipped with fault detection circuitry to shut down sonication in the event that a fault occurs.
