Impedance Analyzer PV520A-V (1KHz~5MHz)
$3,650.00
14% Off
- Test Range: 1KHz~5MHz
- Portable handheld
- high sensitivity & High accuracy
- 7.8 inch touch screen display
- no skill needed, no training needed, extremely easy to use.
- Super-fast test speed, test 200 points per second
- Standard four-terminal test.
Description
Impedance Analyzer PV520A-V (1KHz~5MHz)
Portable handheld, size only 24cm*19cm* (front 5cm and back 10cm), and the weight is only 1.95 Kg.

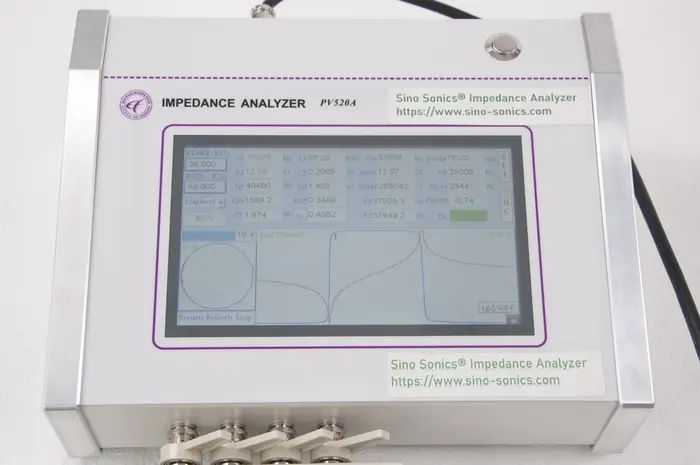

The large 7.8 inch touch screen displays all parameters, admittance circular chart and logarithmic chart at once, which is more intuitive.
Full-screen touch, no physical buttons, intuitive and user-friendly operation, no skill needed, no training needed, extremely easy to use.
Super-fast test speed, test 200 points per second; Standard four-terminal test.
Can analyze all electronic components such as impedance/resistance, capacitance and inductance.
American Branson, Dukan; German Herrmann, SCHUNK and other global first-line ultrasonic brand companies are our customers.
20 years of experience in ultrasonic testing, Hundreds of top domestic engineering universities and research institutes are our customers.
The piezoelectric ceramic jig/clamp can be selected to test various piezoelectric ceramic chips.
Here below shows the details and differences.
Portable Mainframe, Click for detail
Packing Details, click to enlarge
| Preformation | Type: Impedance Analyzer PV520A-V (1KHz~5MHz) |
|---|---|
| Feature | Portable, 7.8″ touch screen |
| Size: | length: 24cm, Width: 19cm front height: 5cm, back height: 10cm |
| Frequency range | 1KHz~5 MHz |
| Measuring target | 1) Resonance frequency Fs 2) Maximum conductance Gmax 3) Half power points F1 and F2 4) Anti-resonance frequency Fp 5) Mechanical quality factor Qm 6) Free capacitance CT 7) Dynamic resistance R1 8) Dynamic inductance L1 9) Dynamic capacitance C1 10) Static capacitance C0 11) Effective electromechanical coupling coefficient Keff 12) Plane electromechanical coupling coefficient Kp 13) Free dielectric constant Total 21 type of test result parameter & Graph. |
| Basic accuracy | +/-0.1% |
| Frequency accuracy | ±10ppm |
| Phase resolution | 0.15° |
| Test environment temperature | 10～40℃ |
| Test speed | 5 sec/one (1000point sweeping) |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～Any |
| Power supply | AC100V～AC250V，50～60Hz, 30W |
Packing Details Photos and Operation Interface.
7″ Touch Screen
Packing Details & Accessaries
Test Fixture for Piezo Element
Test Clamp for Transducer
Test Fixture for Piezo Element
Test Clamp for Transducer
Video Introduction and How to use Impedance Analyzer
Impedance Analyzer PV520A General Introduction
Impedance Analyzer to test Piezoceramic Chips
Impedance Analyzer to test Transducer /Converter
- contact our sales expert for more information, such as Details Spec. User’s Guide book, tech support, and etc.
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 41 × 34 × 27 cm |
| Packing Style | Inside Foam + Carton (Fedex /DHL Delivery) |
| Payment Term | Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500 |
| Delivery Time | 7 days after receiving payment |
