• Brand Name: Sino Sonics Piezo Ceramic Ball

  • Materials: PZT 8, PZT 5, PZT 4 Series

  • Payment Term: Bank Transfer T/T, West Union, Paypal

  • Packing: Inside foam, outside: Carton Box with Fasten Strip

  • Delivery Time: 7-10 Days maximum after deposit.

  • Shipping Term: by DHL or FedEx, door to door shipment.

  • Place of Origin: Wuxi City, China origin.

  • Welcome customized size & OEM work.

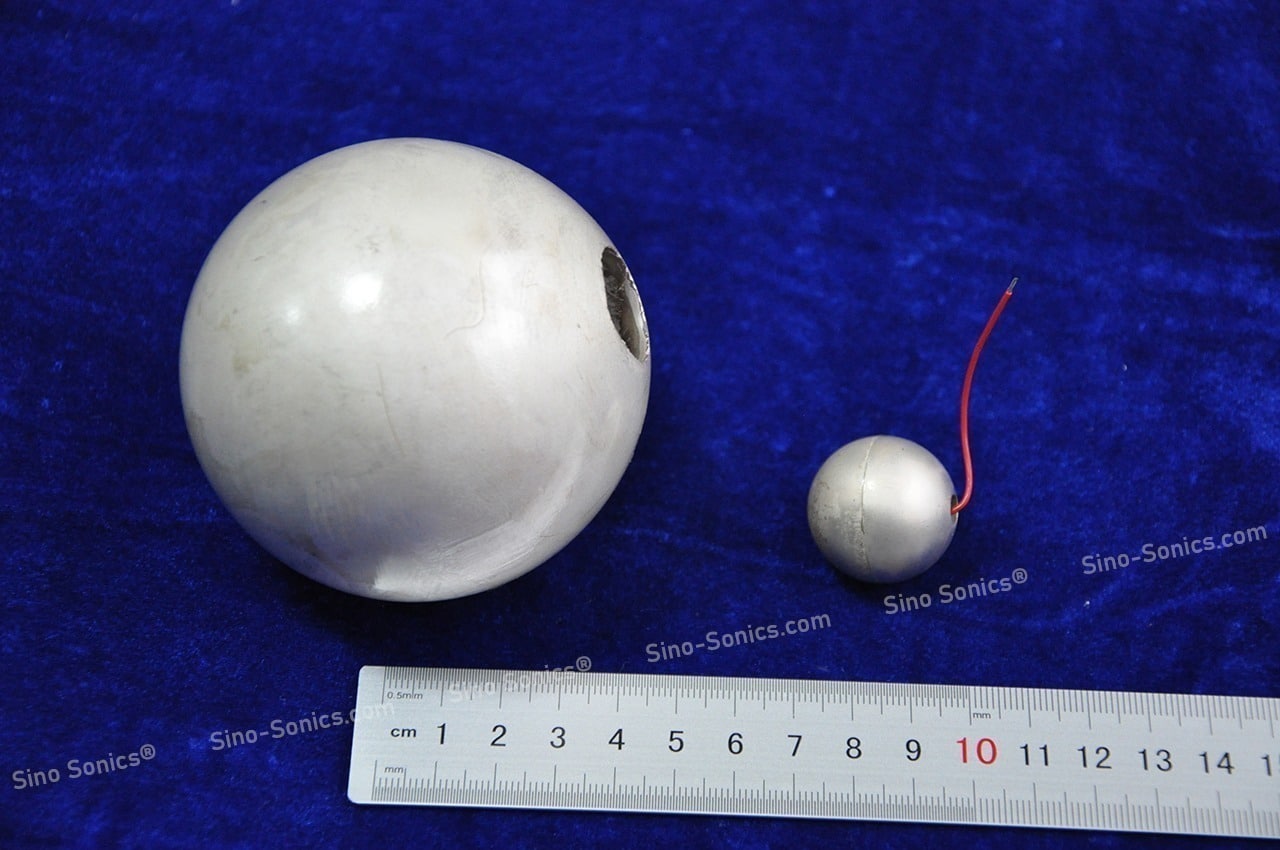

Piezo Ceramic Ball

Here below shows our standard size and ready stocks for Piezo Ceramic Ball

Remarks:
Hollow sphere crystal series：
SΦ-series (completed balls = 2 semispherical parts = 2 x SR-series)

All size are Customizable! Customer’s Design Welcome! You can purchase here.

Type & Spec Dimensions(mm)
External Diameter		 Dimensions(mm)
Small Hole		 Dimensions(mm)
Wall Thickness		 Frequency
fs (kHz)		 Coupling Coefficient
Kr		 Capacitance
PZT-51
SΦ5 Φ5 Φ1.5 0.5 335 ＞0.4 2.5
SΦ10 Φ10 Φ3 0.8 164 ＞0.4 6.4
SΦ15 Φ15 Φ4 0.8 107 ＞0.5 15.5
SΦ20 Φ20 Φ5 1.0 80  ＞0.5 22
SΦ25 Φ25 Φ5 1.2 67  ＞0.5 28.8
SΦ30 Φ30 Φ6 1.1 54  ＞0.5 46.5
SΦ40 Φ40 Φ8 1.2 40 ＞0.5 76.5
SΦ50 Φ50 Φ8 1.2 32 ＞0.5 121
